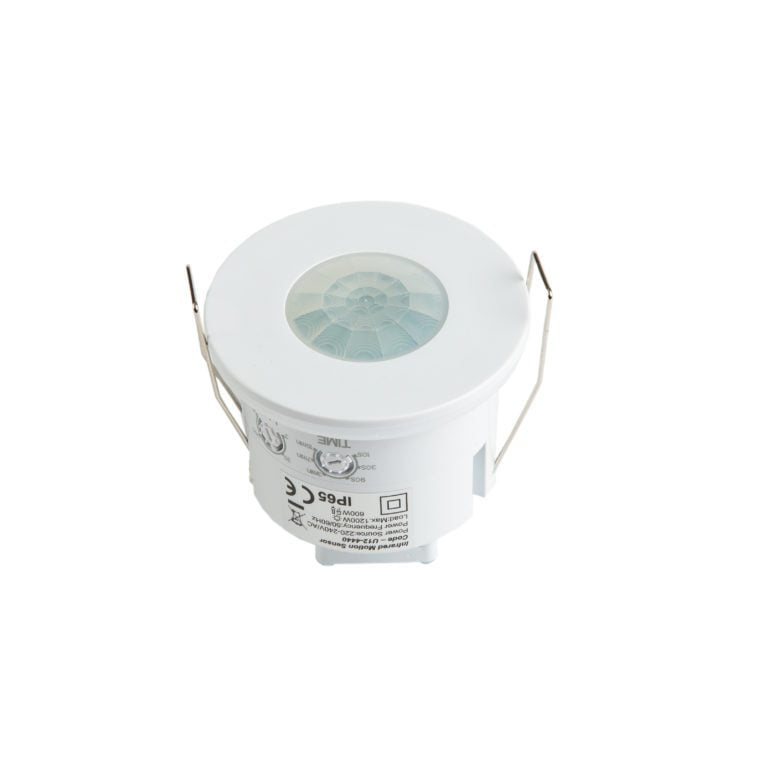

U12-4440 IP65 360º RECESSED MOUNTED PIR SINGLE CHANNEL

SKU U12-4440

£16.20 Excl. VAT

21 in stock

First things first, you must apply for a TLW Global trade account on our website (or via a phone call, if this is your preference) and be accepted before you will be allowed to view our prices and place orders.

Trade accounts are completely free and we don’t require any minimum orders. As long as the account remains active, you can log in at your convenience and place orders at a time that suits you.

Once you have registered and been approved as a trade buyer, you will be able to view our trade prices. If you are a trade customer, you will be able to view the trade prices on the product pages. You can also view the cost of the prices including or excluding VAT using our toggle function.

Our standard delivery for mainland England, Wales and Scotland takes two working days to deliver our products. This is available on most products if all items are in stock, where orders are placed before 2.30pm.

All returns to TLW need to be approved before they are sent back, otherwise we may not be able to guarantee a credit for yourselves.

Learn More >

Description

• Supply voltage 230V +/- 10%
• Recessed mounting
• 360º PIR detector
• 8m diameter (4m radius) detection range at 2.4m mounting height
• Light ON time adjustable 10sec – 15mins
• IP65 when recessed, Seal must be in place.

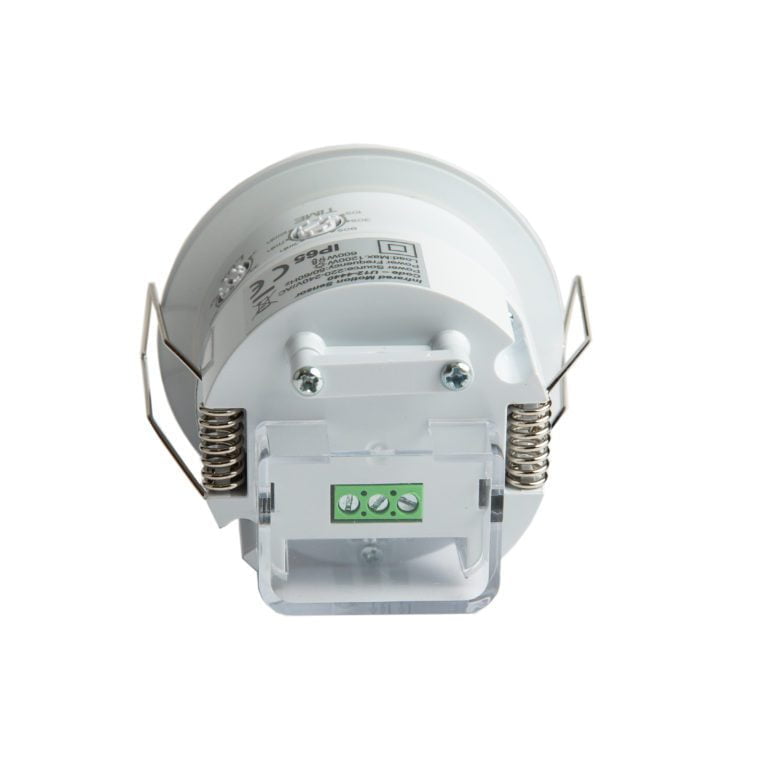

• Screw in terminal connection
• Power consumption <0.5w
• Adjustable light level control
• Temperature –20 to 40 degrees C
• Total PIR switching: 1200W (e.g. 20x 100W GLS) incandescent or halogen, 300W fluorescent/low energy
• Not suitable for discharge lighting
• Overall dimensions (mm) Diameter 80mm recess 50mm cut out 65mm
• Conforms to Directives – 73/23/EEC, 89/336/EEC

Downloads



Download Product Spec Sheet

Download Installation Instructions
